Generally speaking, FPV drones differ from traditional drones in two major ways. The first is the immersive flight experience provided by the goggles. The second big difference is the flight itself. Compared to most camera drones, FPV drones typically allow for much higher speeds and limitless maneuvering capabilities with no angle limits on any of the axes. Because of this, FPV drones have typically required a much higher level of skill to fly.
DJI Drones
You can't go wrong with the market leader in easy-to-fly drones and aerial photography systems. DJI quadcopters like the Phantom are the standard in consumer drone technology.
DJI FPV Experience Combo
Sold Out $1,299.00
OVERVIEW
DJI has redefined the drone racing industry with the new Digital FPV System. It delivers lower latency rates within 28 ms, a 4km maximum transmission range, stunning HD 720p/120fps resolution, and, most importantly, an unforgettable FPV flying experience.

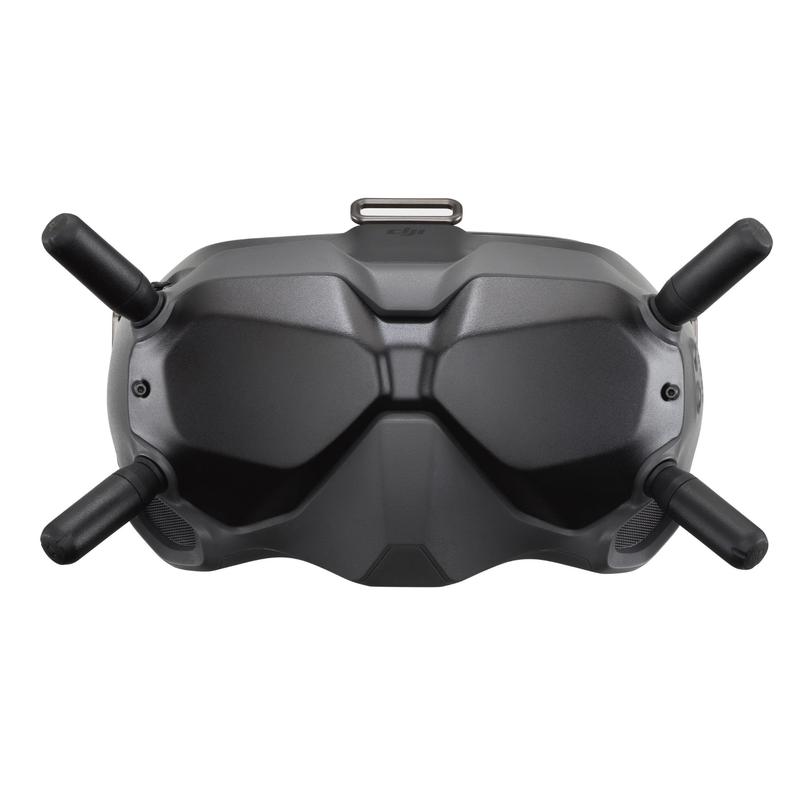

DJI FPV Goggles
Sold Out $829.00
OVERVIEW
High definition, low latency, strong immersion, long-distance transmission, and strong anti-interference.
The new DJI FPV Goggles with digital image transmission features high definition, low latency, strong immersion, long-distance transmission, and strong anti-interference. Target users are racing drone pilots and FPV enthusiasts.
Highlights
High definition, low latency, strong immersion, long-distance transmission, and strong anti-interference.
Tips
Avoid exposing the goggles to direct sunlight. If you use DJI FPV Goggles and DJI FPV Remote Controller at the same time, you must first link the air unit and the goggles together, and then link the remote controller to the air unit.
In The Box
DJI FPV Goggles (including the foam padding) × 1
Power cable × 1
Antenna × 4
Headband × 1
USB-C cable × 1
Bundle pocket × 1
Power cable × 1
Antenna × 4
Headband × 1
USB-C cable × 1
Bundle pocket × 1
Specifications
Weight: Approx. 415 g (headband and antennas included)
Dimensions:
202 × 126 × 110 mm (antennas included)
184 × 122 × 110 mm (antennas excluded)
Screen Size: 2-inch × 2
Screen Resolution (Single Screen) : 1440 × 810
Screen Renew Rate: 120 Hz
Communication Frequency: 5.725-5.850 GHz
Transmitter Power (EIRP) : FCC/MIC: <30 dBm; CE: <14 dBm; SRRC: <19 dBm
Live View Mode
Low Latency Mode (720p/120fps)
High-Quality Mode (720p/60fps)
Video Format: MP4 (Video format: H.264)
Supported Video Play Format: MP4, MOV, MKV (Video format: H.264; Audio format: AAC-LC, AAC-HE, AC-3, MP3)
Operating Temperature: 32° to 104° F (0° to 40° C)
Power Input: 7.4-17.6 V
FOV Adjustable from 30° to 54°. Adjustable image size from 50%-100%
Interpupillary Distance Range: 58 -70 mm
Battery: 6.6V-21.75V
External battery, total power consumption of 7W
Supported Storage Card: microSD cards with capacities of up to 128GB
Dimensions:
202 × 126 × 110 mm (antennas included)
184 × 122 × 110 mm (antennas excluded)
Screen Size: 2-inch × 2
Screen Resolution (Single Screen) : 1440 × 810
Screen Renew Rate: 120 Hz
Communication Frequency: 5.725-5.850 GHz
Transmitter Power (EIRP) : FCC/MIC: <30 dBm; CE: <14 dBm; SRRC: <19 dBm
Live View Mode
Low Latency Mode (720p/120fps)
High-Quality Mode (720p/60fps)
Video Format: MP4 (Video format: H.264)
Supported Video Play Format: MP4, MOV, MKV (Video format: H.264; Audio format: AAC-LC, AAC-HE, AC-3, MP3)
Operating Temperature: 32° to 104° F (0° to 40° C)
Power Input: 7.4-17.6 V
FOV Adjustable from 30° to 54°. Adjustable image size from 50%-100%
Interpupillary Distance Range: 58 -70 mm
Battery: 6.6V-21.75V
External battery, total power consumption of 7W
Supported Storage Card: microSD cards with capacities of up to 128GB
Compatibility
DJI FPV Air Unit
DJI FPV Remote Controller
DJI FPV Remote Controller

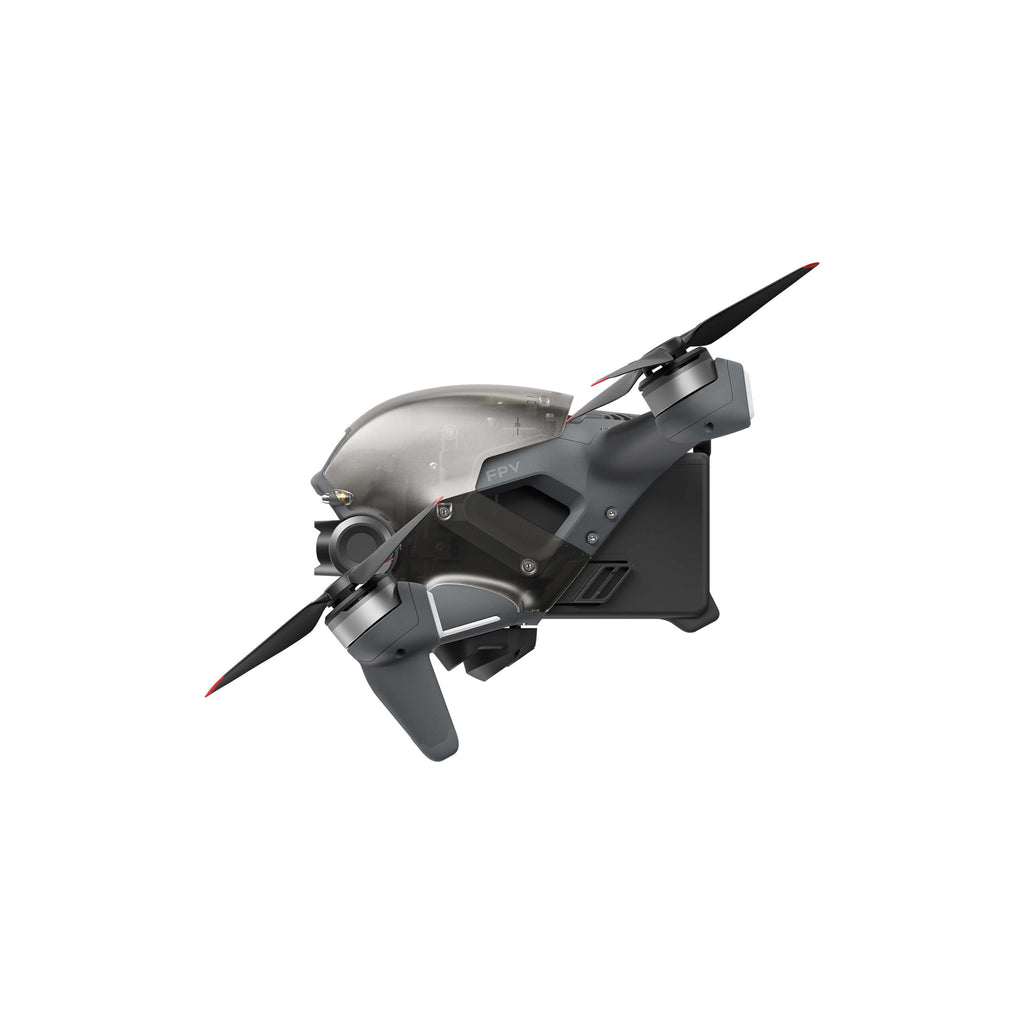

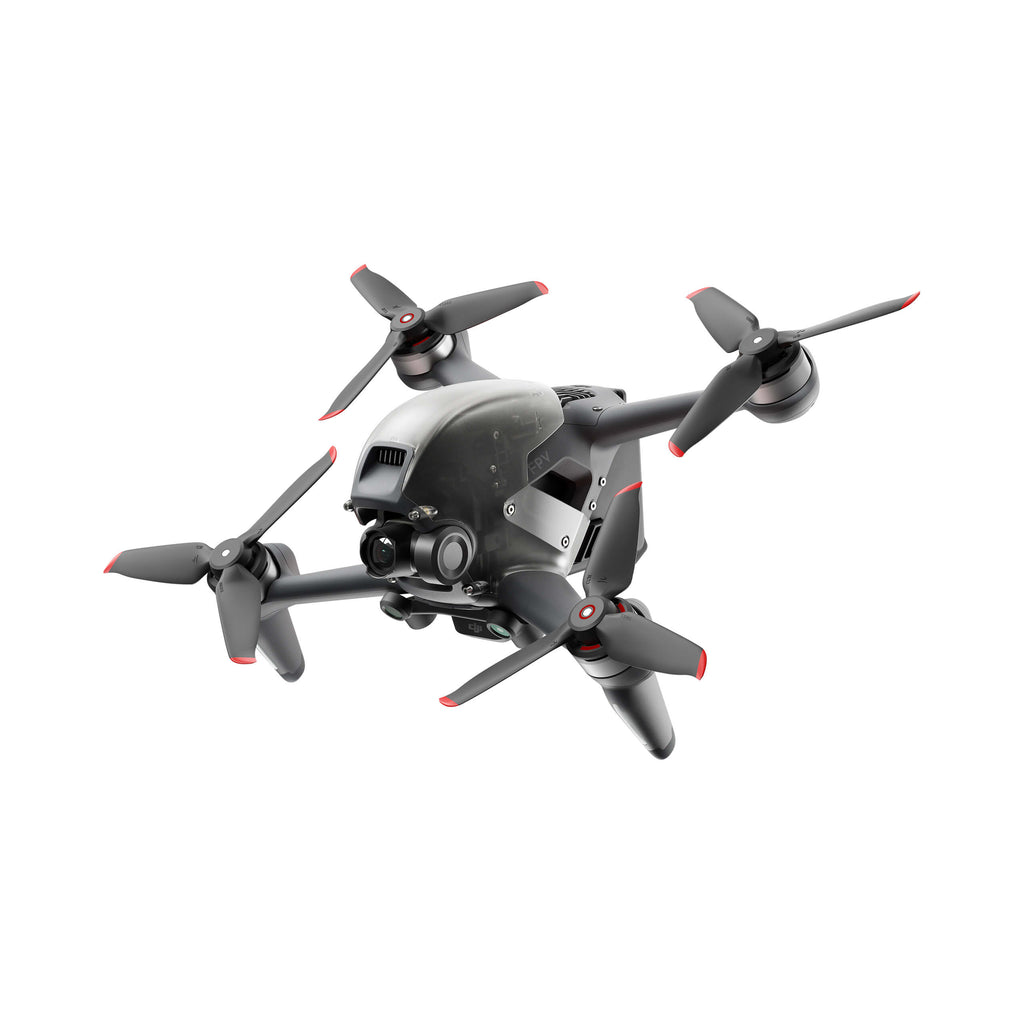

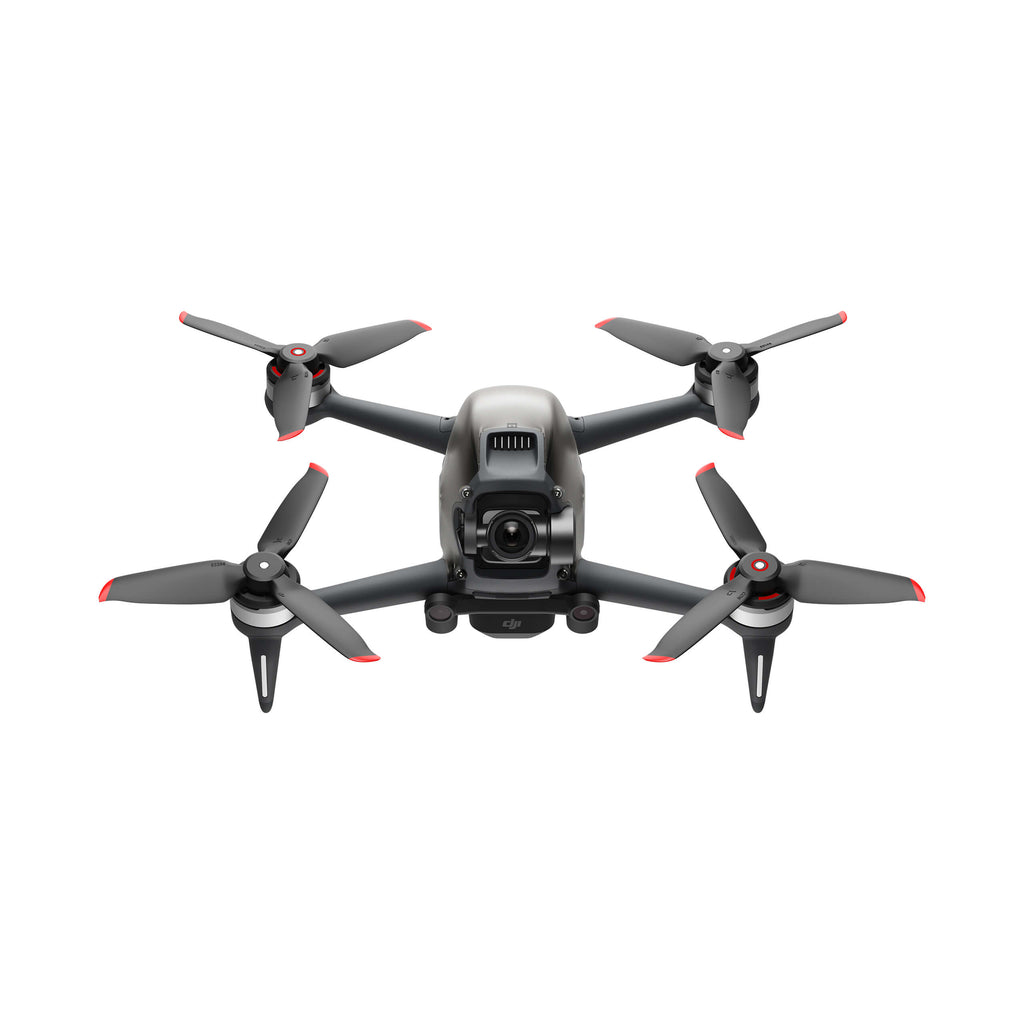

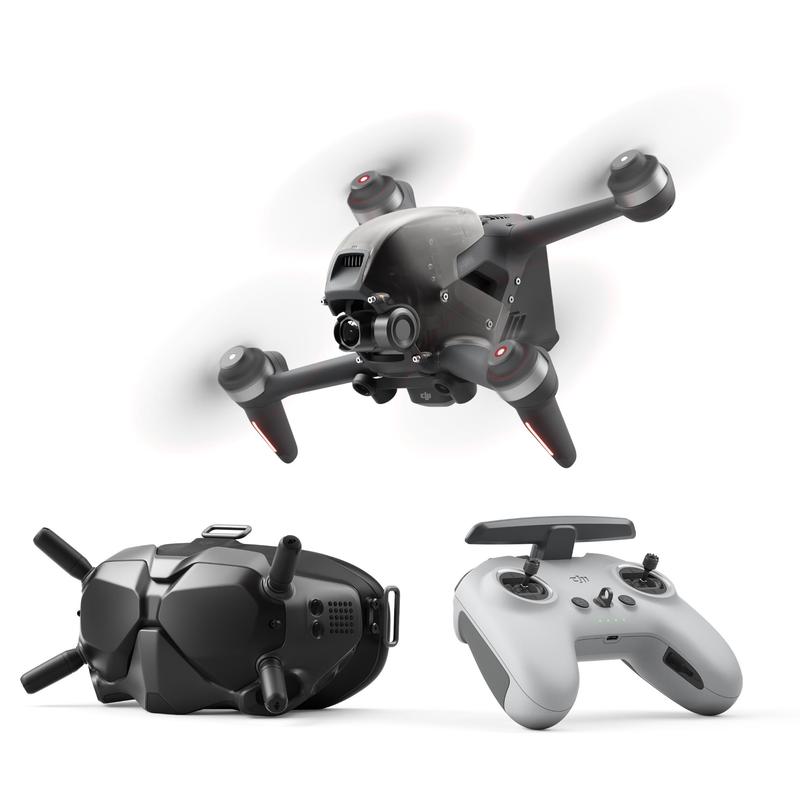

DJI FPV Combo
Sold Out $2,099.00
- Immersive Flight Experience
- 4K/60fps Super-Wide 150° FOV
- 10km HD Low-Latency Video Transmission
- Brand-New S Mode
- Emergency Brake and Hover

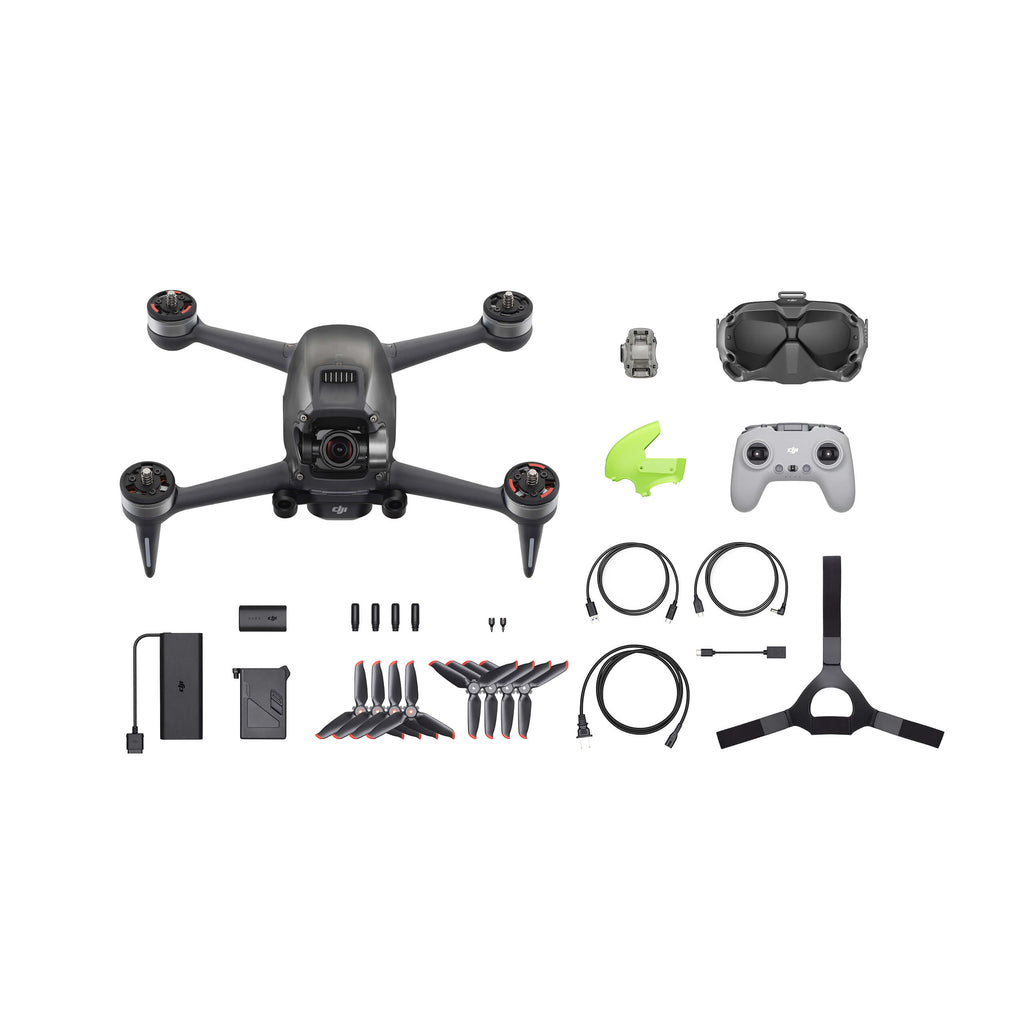

What's in the Box
|
DJI FPV Drone×1 |
DJI FPV Intelligent Flight Battery×1 |
DJI FPV Propellers (Pair)×4 |
DJI FPV Gimbal Protector×1 |
DJI FPV Top Shell×1 |
|
DJI FPV Remote Controller 2×1 |
Spare Control Sticks (Pair)×1 |
DJI FPV Goggles V2×1 |
DJI FPV Goggles Antenna (Dual Band)×4 |
DJI FPV Goggles Battery×1 |
|
DJI FPV Goggles Power Cable (USB-C)×1 |
DJI FPV Goggles Headband×1 |
DJI FPV Goggles Foam Padding×1 |
DJI FPV AC Power Adapter×1 |
DJI FPV AC Power Cable×1 |
|
USB-C Data Cable × 1 |
USB-C OTG Cable × 1 |
|
|
|
Take a Closer Look
Immersive Flying Experience
Step into the sky with goggles, HD low-latency image transmission, and limitless flight control. [1]
Easy to Use
Multiple flight modes let users of any level fly, and the ultra-intuitive DJI Motion Controller provides stunningly intuitive control. [6]
Ready to Fly
DJI FPV comes fully assembled, with everything you need for a seamless, hassle-free flight experience. Repairs and fast and easy thanks to a modular design with easily replaceable parts.
High-Quality Video
Ensure footage is as breathtaking as the experience with 4K/60fps video and a super-wide 150° FOV. [2]
Advanced Safety Features
Fly confidently thanks to the Emergency Brake and Hover feature [4], RTH, an auxiliary bottom light [4], and other advanced safety features.
Immersive Flying Experience
Step into the sky with goggles, HD low-latency image transmission, and limitless flight control. [1]
Easy to Use
Multiple flight modes let users of any level fly, and the ultra-intuitive DJI Motion Controller provides stunningly intuitive control. [6]
Ready to Fly
DJI FPV comes fully assembled, with everything you need for a seamless, hassle-free flight experience. Repairs and fast and easy thanks to a modular design with easily replaceable parts.
High-Quality Video
Ensure footage is as breathtaking as the experience with 4K/60fps video and a super-wide 150° FOV. [2]
Advanced Safety Features
Fly confidently thanks to the Emergency Brake and Hover feature [4], RTH, an auxiliary bottom light [4], and other advanced safety features.
Let’s Answer Your Questions
-
What’s the difference between DJI FPV and traditional drones?
-
What is the difference between DJI FPV and traditional racing drones?
DJI FPV has a built-in imaging system, high-definition, low-latency transmission with a range of up to 10 km, and a battery life of approximately 20 minutes. The integrated, ready-to-fly design means users don’t need to assemble the drone themselves. DJI FPV is also equipped with advanced safety features such as emergency brake hovering, intelligent return to home, and DJI Care Refresh service for added flight protection and greater peace of mind during flight.
-
Is the DJI FPV Combo worth it?
The DJI FPV Combo comes with everything you need to start flying. It includes the FPV Drone, Goggles V2, Remote Controller 2, DJI FPV Intelligent Flight Battery, DJI FPV Goggles Battery, DJI FPV AC Power Adapter, DJI FPV Propellers, and other related cables and accessories. For anyone interested in diving into the world of FPV flight, it’s the perfect way to do so.
-
What is the Motion Controller? Is it worth it?
The DJI Motion Controller is a small, hand-held device that revolutionizes the aerial experience. This compact device allows the aircraft to maneuver based on your natural hand motions, delivering an ultra-intuitive experience and allowing even beginners to maneuver like seasoned FPV pilots.
-
I am a beginner/new pilot. Where can I find tips about using DJI FPV?
DJI FPV comes with a user manual and comprehensive tutorials, which you can get from the Flight Academy in the DJI Fly app. DJI also developed the DJI Virtual Flight app [5], which lets users practice flying virtually before taking off in the real world. All you have to do is connect the DJI FPV Goggles V2 and remote controller to your mobile device with the Virtual Flight app and you’re ready to master FPV flight in a risk-free way.
-
Does DJI FPV come with accidental damage coverage?
DJI FPV comes with a standard product warranty. If you would like to protect DJI FPV against accidental damage, purchase DJI Care Refresh to get a comprehensive service plan that provides replacement units. DJI Care Refresh 1-Year Plan provides two replacement units for a small additional charge in one year. DJI Care Refresh 2-Year Plan offers you three replacements in two years. Both of them can be purchased while purchasing DJI FPV.
-
Does DJI FPV support obstacle detection and avoidance?
The DJI FPV aircraft comes with forward and downward vision sensors that can automatically detect objects and decelerate when flying in N mode. However, there is no automatic avoidance function. When obstacles are detected, the aircraft will slow down but will not stop completely unless controlled to do so by the pilot.
-
Do I need to assemble the DJI FPV drone myself?
No. Like many previous DJI drones, DJI FPV doesn’t require any assembly. Simply open the box, install the propellers and battery, and DJI FPV is ready to fly. However, DJI FPV does have a modular design with easily replaceable parts. Users can replace the top cover, gimbal camera, and landing gear if any of these parts become damaged.
-
What is the maximum transmission range of DJI FPV?
DJI FPV comes with DJI O3 (OcuSync 3.0), DJI’s best transmission system yet. DJI O3 was adapted to match the unique needs of DJI FPV, and features crystal-clear real-time video transmission at distances of up to 10 km.
Specs
Camera
-
Sensor
- 1/2.3” CMOS
Effective pixels: 12 million
-
Lens
-
FOV: 150°
35mm Format Equivalent: 14.66 mm
Aperture: f/2.8
Focus Mode: Fixed Focus
Focus Range: 0.6 m to ∞
-
ISO
-
100-12800
-
Shutter Speed
-
1/50-1/8000 s
-
Still Photography Modes
-
Single shot
-
Max Image Size
-
3840×2160
-
Photo Format
-
JPEG
-
Video Resolution
-
4K: 3840×2160 at 50/60fps
FHD: 1920×1080 at 50/60/100/120fps
-
Video Formats
-
MP4/MOV (H.264/MPEG-4 AVC, H.265/HEVC）
-
Max Video Bitrate
-
120 Mbps
-
Color Profile
-
Standard, D-Cinelike
-
RockSteady EIS
-
Available
-
Distortion Correction
-
Available
-
Supported File Formats
-
exFAT (recommended)
FAT32
Gimbal
-
Mechanical Range
-
Tilt: -65° to 70°
-
Controllable Range
-
Tilt: -50° to 58°
-
Stabilization
-
Single-axis (tilt), electronic roll axis
-
Max Control Speed
-
60°/s
-
Angular Vibration Range
-
±0.01° (N mode)
-
Electronic Roll Axis
-
Available (can stabilize footage when the aircraft is tilted at angles of up to 10°)
Aircraft
-
Takeoff Weight
-
Approx. 795 g
-
Dimensions
-
255×312×127 mm (with propellers)
178×232×127 mm (without propellers)
-
Diagonal Distance
-
245 mm
-
Max Ascent Speed
-
M mode: No limit
S mode: 15 m/s
N mode: 8 m/s
-
Max Descent Speed
-
M mode: No limit
S mode: 10 m/s
N mode: 5 m/s
-
Max Speed
-
140 kph; M mode: 39 m/s (27 m/s in Mainland China)
S mode: 27 m/s
N mode: 15 m/s
-
Max Acceleration
-
0-100 kph: 2 s (in ideal conditions while flying in M mode)
-
Max Service Ceiling Above Sea Level
-
6,000 m
-
Max Flight Time
-
Approx. 20 mins (measured while flying at 40 kph in windless conditions)
-
Max Hover Time
-
Approx. 16 mins (measured when flying in windless conditions)
-
Max Flight Distance
-
16.8 km (measured while flying in windless conditions)
-
Max Wind Speed Resistance
-
39-49 kph (25-31 mph)
-
Operating Temperature
-
-10° to 40° C (14° to 104° F)
-
Transmitter Power (EIRP)
-
2.400-2.4835 GHz
FCC: ≤ 31.5dBm
CE: ≤ 20 dBm
SRRC: ≤ 20 dBm
MIC: ≤ 20 dBm
5.725-5.850 Ghz
FCC: ≤ 31.5 dBm
CE: ≤ 14 dBm
SRRC: ≤ 25.5 dBm
-
Number of Antennas
-
Four
-
GNSS
-
GPS+GLONASS+GALILEO
-
Hovering Accuracy Range
-
Vertical:
±0.1 m (with Vision Positioning)
±0.5 m (with GPS positioning)
Horizontal:
±0.3 m (with Vision Positioning)
±1.5 m (with GPS positioning)
-
Supported SD Cards
-
microSD (up to 256 GB)
-
Internal Storage
-
N/A
Sensing System
-
Forward
-
Precision Measurement Range: 0.5-18 m
Obstacle Sensing: Available in N mode only
FOV: 56° (horizontal), 71° (vertical)
-
Downward (dual vision sensors + ToF)
-
ToF Effective Sensing Height: 10 m
Hovering Range: 0.5-15 m
Vision Sensor Hovering Range: 0.5-30 m
-
Downward Auxillary Light
-
Single LED
-
Operating Environment
-
Refers to non-reflective, discernible surfaces
Diffuse reflectivity >20% (e.g. walls, trees, people)
Adequate lighting conditions (lux >15 in normal indoor lighting conditions)
Charger
-
Input
-
100-240 V, 50/60 Hz, 1.8 A
-
Output
-
Battery charging interface:
25.2 V ± 0.1 V
3.57 A ± 0.1 A (high current)
1 A ± 0.2 A (low current)
USB Port:
5V/2A (×2)
-
Rated Power
-
86 W
Intelligent Flight Battery
-
Battery Capacity
-
2000 mAh
-
Voltage
-
22.2 V
-
Max Charging Voltage
-
25.2 V
-
Battery Type
-
LiPo 6S
-
Energy
-
44.4 Wh@0.5C
-
Discharge Rate
-
Standard: 10C
-
Weight
-
295 g
-
Charging Temperature
-
5° to 40° C (41° to 104° F)
-
Max Charging Power
-
90 W
Video Transmission
-
Operating Frequency
-
2.400-2.4835 GHz
5.725-5.850 GHz
-
Communication Bandwidth
-
40 MHz (Max.)
-
Live View Mode
-
Low-Latency Mode: 810p/120fps ≤ 28ms
High-Quality Mode: 810p/60fps ≤ 40ms
-
Max Video Bitrate
-
50 Mbps
-
Transmission Range
-
10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC)
-
Audio Transmission Support
-
Yes
DJI FPV Goggles V2
-
Weight
-
Approx. 420 g (headband and antennas included)
-
Dimensions
-
184×122×110 mm (antennas excluded)
202×126×110 mm (antennas included)
-
Screen Size
-
2-inches (×2)
-
Screen Refresh Rate
-
144 Hz
-
Communication Frequency [1]
-
2.400-2.4835 GHz
5.725-5.850 GHz
-
Transmitter Power (EIRP)
-
2.400-2.4835 GHz
FCC: ≤ 28.5 dBm
CE: ≤ 20 dBm
SRRC: ≤ 20 dBm
MIC: ≤ 20 dBm
5.725-5.850 GHz
FCC: ≤ 31.5 dBm
CE: ≤ 14 dBm
SRRC: ≤ 19 dBm
-
Communication Bandwidth
-
40 MHz (Max.)
-
Live View Mode
-
Low-Latency Mode: 810p/120fps ≤ 28ms*
High-Quality Mode: 810p/60fps ≤ 40ms*
* A 150° FOV is available when shooting at 50 or 100 fps. For other frame rates, the FOV will be 142°.
-
Max Video Bitrate
-
50 Mbps
-
Transmission Range [2]
-
10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC)
-
Video Format
-
MP4 (Video format: H.264)
-
Supported Video and Audio Playback Formats
-
MP4, MOV, MKV (Video format: H.264; Audio format: AAC-LC, AAC-HE, AC-3, MP3）
-
Operating Temperature
-
0° to 40° C (32° to 104° F)
-
Power Input
-
Dedicated DJI Goggles batteries or other 11.1.-25.2 V batteries.
-
FOV
-
FOV: 30° to 54°; Image size: 50-100%
-
Interpupillary Distance Range
-
58-70 mm
-
Supported microSD Cards
-
microSD (up to 256 GB)
DJI FPV Goggles Battery
-
Capacity
-
1800 mAh
-
Voltage
-
9 V (Max.)
-
Type
-
LiPo 2S
-
Energy
-
18 Wh
-
Charging Temperature
-
0° to 45° C (32° to 113° F)
-
Max Charging Power
-
10 W
-
Battery Life
-
Approx. 110 minutes (measured in an environment of 25°C at maximum brightness level)

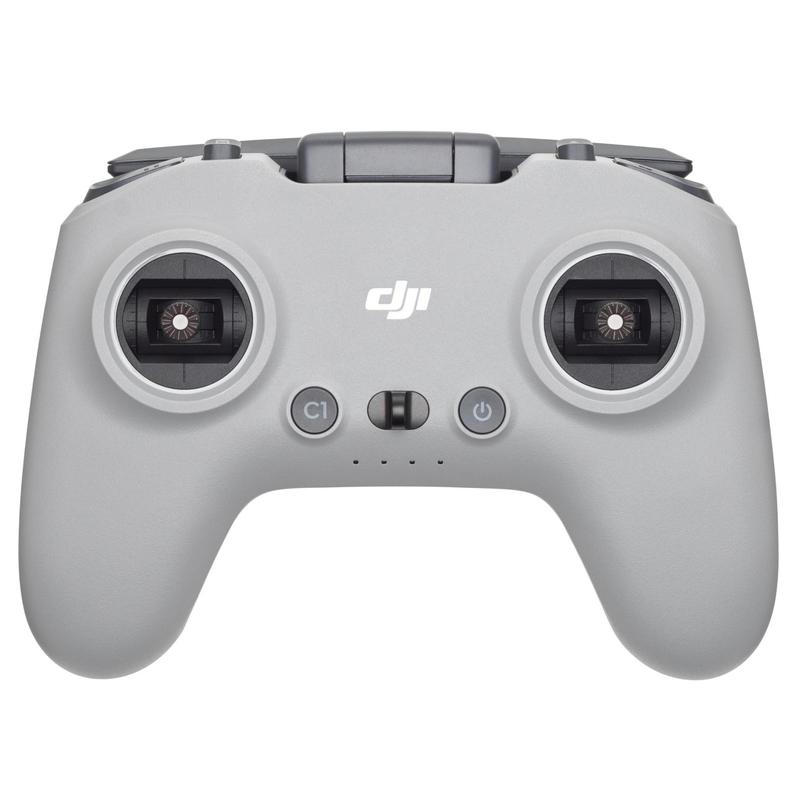

DJI FPV Remote Controller
-
Operating Frequency
-
2.400-2.4835 GHz
5.725-5.850 GHz
-
Transmitter Power (EIRP)
-
2.400-2.4835 GHz
FCC: ≤ 28.5 dBm
CE: ≤ 20 dBm
SRRC: ≤ 20 dBm
MIC: ≤ 20 dBm
5.725-5.850 GHz
FCC: ≤ 31.5 dBm
CE: ≤ 14 dBm
SRRC: ≤ 19 dBm
-
Max. Transmission Distance
-
10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC)
-
Gimbal Dimensions
-
190×140×51 mm
-
Weight
-
346 g
-
Battery Life
-
Approx. 9 hours
-
Charging Time
-
2.5 hours
Motion Controller
-
Model
-
FC7BMC
-
Weight
-
167 g
-
Operating Frequency Range
-
2.400-2.4835 GHz; 5.725-5.850 GHz
-
Max Transmission Distance (unobstructed, free of interference)
-
10 km (FCC), 6 km (CE/SRRC/MIC)
-
Transmitter Power (EIRP)
-
2.4 GHz: ≤28.5 dBm (FCC), ≤20 dBm (CE/ SRRC/MIC)
5.8 GHz: ≤31.5 dBm (FCC), ≤19 dBm (SRRC), ≤14 dBm (CE)
-
Operating Temperature Range
-
-10° to 40° C (14° to 104° F)
-
Battery Life
-
300 minutes
microSD card
-
Supported microSD cards
-
Max 256 GBUHS-I Speed Grade 3
-
Recommended microSD cards
-
SanDisk High Endurance U3 V30 64GB microSDXC
SanDisk Extreme PRO U3 V30 A2 64GB microSDXC
SanDisk Extreme U3 V30 A2 64GB microSDXC
SanDisk Extreme U3 V30 A2 128GB microSDXC
SanDisk Extreme U3 V30 A2 256GB microSDXC
Lexar 667x V30 128GB microSDXC
Lexar High Endurance 128GB U3 V30 microSDXC
Samsung EVO U3 (Yellow) 64GB microSDXC
Samsung EVO Plus U3 (Red) 64GB microSDXC
Samsung EVO Plus U3 256GB microSDXC
Netac 256GB U3 A1 microSDXC
Footnotes:
1. Before flying DJI FPV, check local laws and regulations. Ensure that your flights are conducted safely and in accordance with all local laws and regulations.
2. The 150° FOV is only applicable when shooting at 50 or 100 fps.
3. Obstacle sensing is only available when the aircraft is in N mode. In this mode, DJI FPV will automatically decelerate when it detects obstacles, but it will not automatically stop.
4. To ensure flight safety when using M mode, it is recommended to have another person present to observe the flight environment. To obtain a more precise control experience when using M mode, adjust the F1 screw on the back of the thrust control stick (right side if flying in Mode 1, left side if flying in Mode 2) to disable recentering.
5. The DJI FPV aircraft supports two video coding formats, while the DJI FPV Goggles V2 only supports H.264.
6. In 810p/120fps Low-Latency mode, the video transmission latency is lower than 28ms; in 810p/60fps High-Quality mode, the video transmission latency is lower than 40ms.
7. FCC-compliant. Measurements were taken in unobstructed environments free of interference. Always follow local rules and regulations and fly your drone within your visual line of sight unless otherwise permitted.
8. The highest video transmission bitrate is 50 Mbps. Measured in an open, outdoor environment with no obstacles or interference.
9. DJI Care Refresh (DJI FPV) is a service plan that provides you with greater peace of mind during flight. DJI Care Refresh (DJI FPV) provides replacements for a small additional cost. If you purchase DJI Care Refresh (2-Year Plan), you will also enjoy an extension of the original warranty by up to two years (extension duration varies by region). For more information, contact DJI Support.
10. The DJI Virtual Flight app currently supports only iOS devices.
11. This function will be available in a future firmware update. Transmitted images from the goggles to the app can be sent to a smartphone via cable (USB-C to USB-C or USB-C to lightning).
12. The Fly Spots feature is currently available only in Mainland China. All flight locations displayed by the Fly Spots feature are based on voluntarily-shared location tags from SkyPixel users. DJI never collects or shares user data without user consent. Always check and follow the applicable rules wherever you fly.
Follow
✉ABN: 75 625 517 375
Call us: 1300 79 03 51
Email: info@crazyshotdrones.com.au
(Email response within 24 - 72hrs)
Chat/Call Support Hours: 9am – 5pm (AEST)
Sign up to get the latest on sales, new releases and more …
We are an Australian retailer and pride ourselves on providing the best customer service and advice. Alternatively please call our friendly team for support. (Support Hours: 9am – 5pm AEST)
© 2024 Crazy Shot Drones.
